Filter Power Buttons: Dedicated power buttons toggle each EQ filter on or off, enabling easy A/B comparisons with and without processing.
High-Pass Filter (HPF): Removes low frequencies, and passes high frequencies. Used to clear unwanted low-end noise and improve tonal balance.
Frequency: Sets the cutoff frequency (in Hz) to remove low-end frequencies below the specified threshold.
HPF Slope: Adjustable between 6, 12, 18, 24, 36, and 48 dB/octave for precise control over the low-end roll-off.
Low-Pass Filter (LPF): Removes high frequencies, and passes low frequencies. Reduces harshness, and provides warmth.
Frequency: Determines the cutoff frequency (in Hz) for removing high-end frequencies above the threshold.
LPF Slope: Adjustable between 6, 12, 18, 24, 36 and 48 dB/octave for precise control over the high-frequency roll-off.
Bell Filters (x3): Adjustable filters to boost or cut frequencies at specific points, shaping tonal character and enhancing frequency focus.
Frequency: Each filter allows independent selection of the center frequency for targeted tonal shaping.
Gain: Controls boost or cut (in dB), offering tonal emphasis or reduction.
Q-Factor: Adjustable for precision, with high Q values for narrow adjustments and low Q for broader changes.
Notch Filters (x2): Removes specific frequencies, e.g. tones or resonances, without affecting surrounding frequencies, via a narrow filter.
Frequency: Selectable for targeting specific resonant frequencies that require reduction.
Q-Factor: Adjustable width for narrow cuts to reduce resonant peaks or broader cuts for smoother tonal shaping.

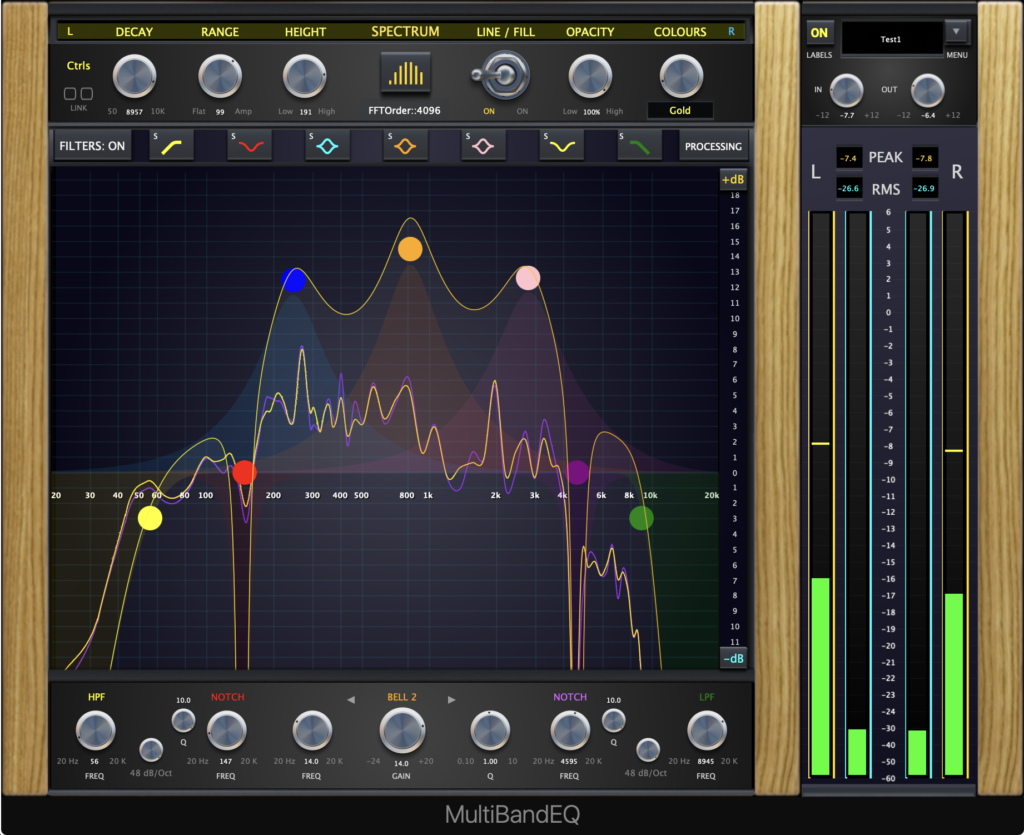

Real-Time Spectrum Analyzer: Covers the full frequency range from 20 Hz to 20 kHz, visually representing audio content and adjustments.
Customizable Display: Users can switch on and off the spectrum display via a dedicated power button, switch between an array of color options, and adjust the spectrums opacity independently for both the left and right channels.
FFT Order: Adjust the spectrums FFT Order via a dedicated menu, with settings ranging from FFT Order: 1024, 2048, 4096, 8192, 16384, 32768.
Spectrum Decay Speed: Adjustable from instant freeze to fast response for tailored visualization of audio decay.
Range Adjustment: Modifies the spectrums range, allowing for a more or less exaggerated visual representation.
Height Adjustment: Modifies the spectrums height, allowing for the spectrum to be adjusted up and down, in relation to any range adjustments.
Value Labels: Each parameter has a value label, showing the parameters current value. All labels can be switched on or off with one click, via a dedicated label on/off button.
Stereo Level Meters: Make use of separate Peak and RMS level meters for the left and right channels, to monitor the signal levels post any EQ adjustments. The peak meter includes a peak hold mechanism for easy peak monitoring.
Preset Management: A fully equipped preset panel is featured, which includes a drop down menu, with factory plugin settings and sub folders for user created settings, providing fast access to preferred configurations. Users can easily save, load and delete presets.
